Products

Flexus D400

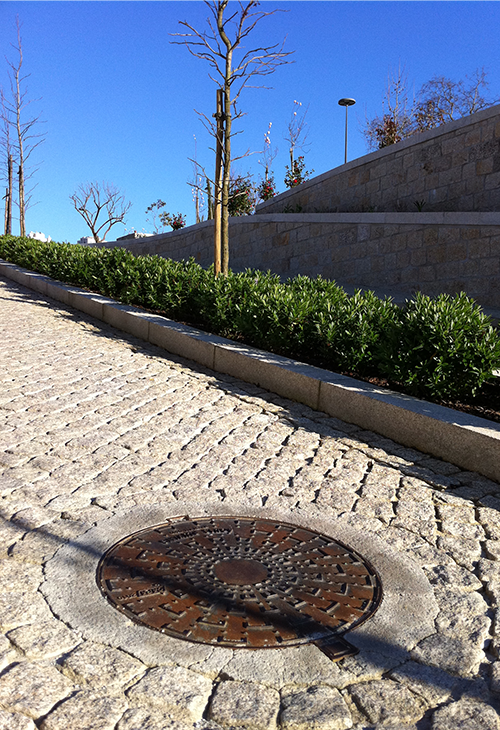

The round manhole cover model "FLEXUS RD 600" represents a new generation of round covers aimed at high-traffic areas.

Made of spheroidal graphite cast iron (EN-GJS-500-7) according to EN 1563, this device is standardized for load class D400 (Group 4 of EN 124-2:2015). It is intended to be applied in passageways (including pedestrian streets), hard shoulders and parking areas for all types of road vehicles.

Frame fitted with elastic gasket to reduce noise under intense traffic.


The hinged cover is provided with an automatic closure-locking by way of a ductile iron elastic bar. The fastening system, in addition to allowing greater stability and safety to the device, allows the opening without a special tool. For increased security, the opening device can also be added through the bottom (inside of the inspection box).

Features

  • Cover made of spheroidal graphite cast iron (ductile), according to EN-GJS-500-7 EN1563;
  • According to EN 124-2:2015, load class D400;
  • Hinged cover and upright removable;
  • Safety lock backstop at 90º;
  • Requires no special tool to be operated;
  • Locking bar by elastica in FFD;
  • Equipped with elastic joint anti-noise;
  • Black painting for corrosion protection;
  • Raised pattern non slip surface;
  • Optimized frame for plumbing the device and set the surrounding concrete;
  • Cover and frame mechanized to ensure a perfect union. (NEW)

Installation Location

Carriageways of roads (including pedestrian streets), hard shoulders, and parking areas for all types of road vehicles.


Reference Model Dim. Frame Dim. Cover Open Clear Height Load Class
922123 600 800 610 575 100 D400

CAPA reserves the right to make changes to the product without prior notice.
